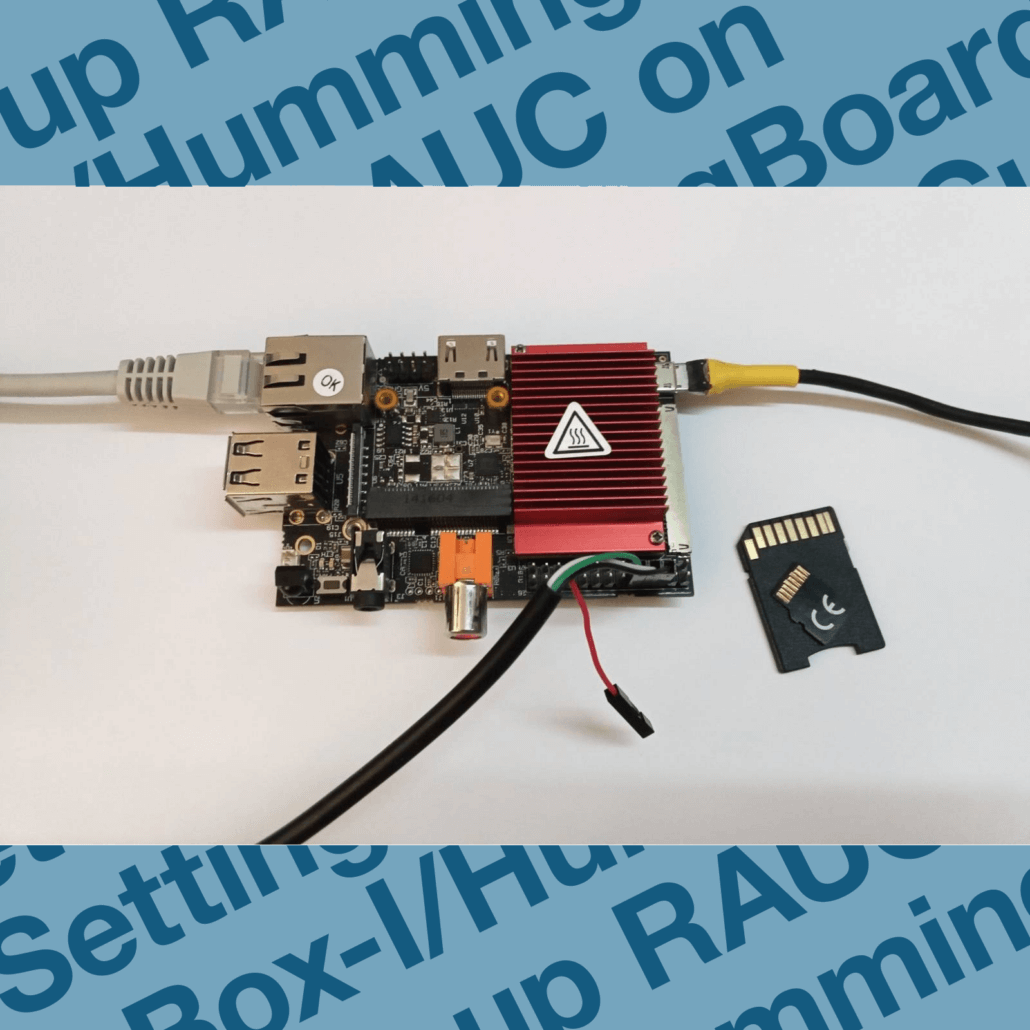

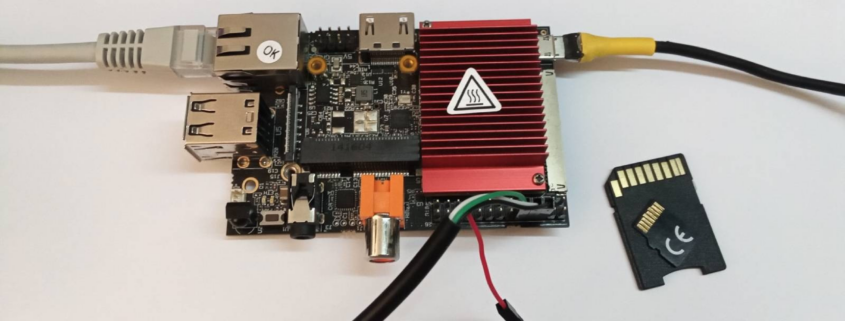

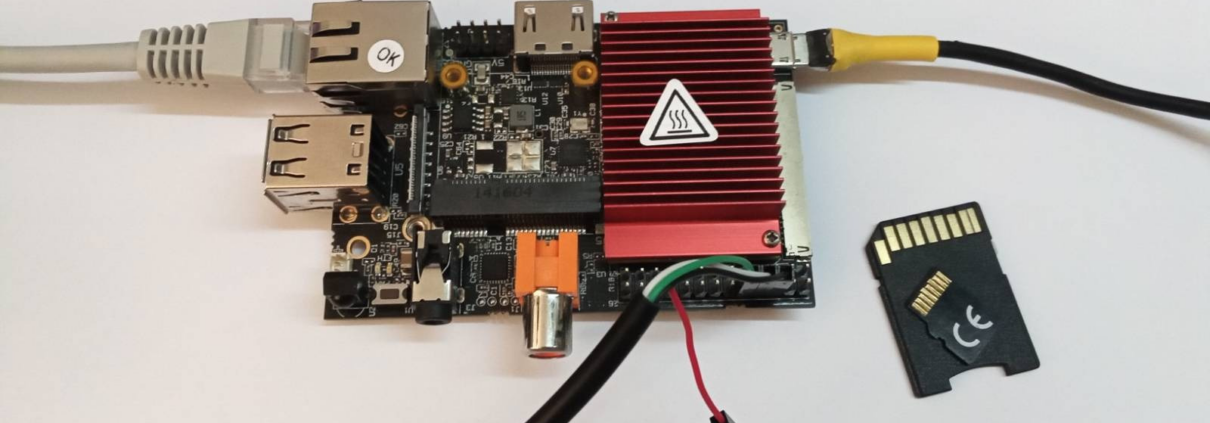

Picture of Hummingboard running RAUC

Setting up RAUC on CuBox-I/HummingBoard for Software Updates

(This article was written by open source software enthusiast and Konsulko Group intern Atanas Bunchev, working with Konsulko Senior Engineer Leon Anavi.)

RAUC is one of the popular solutions that provide OTA (over-the-air) updates for Embedded Linux devices. RAUC is developed with focus on stability, security and flexibility and is compatible with all popular build systems: The Yocto Project/OpenEmbedded, Buildroot and PTXdist.

RAUC is capable of covering various use cases the most simple one being A/B updates.

The A/B updates scenario consists of having 2 identical root filesystems (named A and B), booting from one of them and performing the update on the other. After the update is complete the bootloader will boot from the updated partition on the next system boot. Recently the ‘verity’ update bundle format was introduced in RAUC. This new groundbreaking feature improves the verification process and most importantly allows extending RAUC by built-in HTTP(S) network streaming support, adaptive delta-like updates, and full update bundle encryption.

This article provides an example for setting up RAUC for A/B updates scenario on a HummingBoard board. The hardware used for the example is:

  • HummingBoard Pro board
  • 32GB microSD card
  • UART to USB adapter

RAUC is a robust, powerful and flexible open source solution that requires advanced skills for initial integration. To use RAUC in an image built with the Yocto Project and OpenEmbedded for CuBox-I/HummingBoard one needs to:

  • Use U-Boot as a bootloader
  • Enable SquashFS in the Linux kernel configuration
  • Use ext4 root file system
  • Design specific storage partitioning for the certain use case and configure RAUC accordingly
  • Provide a custom U-Boot script to properly switch between RAUC slots
  • Prepare a certificate and keyring to use for signing and verifying RAUC update bundles.

Building a Linux Distribution with RAUC

I’ve recently contributed to meta-rauc-community, a repository containing minimal RAUC example layers for Yocto/OpenEmbedded.

The following steps will show how to use the meta-rauc-nxp layer from that repository to build and update a minimal Linux distribution. The update will install nano (the text editor) to the system.

Download the reference Yocto distribution, Poky.
We’ll use the latest long term support version, kirkstone.

$ git clone -b kirkstone https://git.yoctoproject.org/poky
$ cd poky

Download meta-rauc-community layers (meta-rauc-nxp):

$ git clone https://github.com/rauc/meta-rauc-community.git

Download the meta-rauc layer:

$ git clone -b kirkstone https://github.com/rauc/meta-rauc.git

Download the BSP layers for cubox-i/HumminbBoard boards:

$ git clone -b kirkstone https://git.yoctoproject.org/meta-freescale
$ git clone -b kirkstone https://github.com/Freescale/meta-fsl-arm-extra.git

Download the meta-openembedded layer (provides nano):

$ git clone -b kirkstone git://git.openembedded.org/meta-openembedded

Initialize the build environment:

$ source oe-init-build-env

Add the layers to conf/bblayers.conf:

$ bitbake-layers add-layer ../meta-openembedded/meta-oe
$ bitbake-layers add-layer ../meta-rauc
$ bitbake-layers add-layer ../meta-freescale
$ bitbake-layers add-layer ../meta-fsl-arm-extra
$ bitbake-layers add-layer ../meta-rauc-community/meta-rauc-nxp

Adjust conf/local.conf by adding the following configurations to the end of the file:

# HummingBoard specifications are very similar to Cubox-I
MACHINE = "cubox-i"

# Accept end user agreement required by the BSP layer.
ACCEPT_FSL_EULA = "1"

# Use systemd as init manager
INIT_MANAGER = "systemd"

# Add RAUC to the image
IMAGE_INSTALL:append = " rauc"
DISTRO_FEATURES:append = " rauc"

# Generate ext4 image of the filesystem
IMAGE_FSTYPES:append = " ext4"

# Use the file containing the partition table specification
WKS_FILE = "sdimage-dual-cubox-i.wks.in"
WKS_FILES:prepend = "sdimage-dual-cubox-i.wks.in "

# Add 150 000 KBytes free space to the root filesystem
# (Adding software with updates require space.)
IMAGE_ROOTFS_EXTRA_SPACE:append = " + 150000"

# Add the boot script to the boot partition
IMAGE_BOOT_FILES:append = " boot.scr"

Note that whitespace inside quotes is intentional and important.

To sign and verify the update bundles RAUC uses SSL keys. A keyring containing all keys that will be used for update bundles needs to be installed on the target.

meta-rauc-community provides a script that would generate example keys and configure the current build environment accordingly. (The script has to be called after sourcing oe-init-build-env)

$ ../meta-rauc-community/create-example-keys.sh

Build a minimal bootable image:

$ bitbake core-image-minimal

Building an image from scratch is a long process involving a lot of tasks. Please patiently wait until bitbake completes all tasks.

It’s strongly recommended to zero-fill the u-boot environment sectors before flashing the image on the microSD card (replace /dev/sdX with the proper device path):

$ dd if=/dev/zero of=/dev/sdX seek=2032 count=16

After the build is done, flash the image to a microSD card (replace /dev/sdX with the proper device path) and boot it on the HummingBoard:

$ bmaptool copy tmp/deploy/images/cubox-i/core-image-minimal-cubox-i.wic.gz /dev/sdX
$ sync
$ eject /dev/sdX

Attach the USB-to-UART adapter to the HummingBoard Pro, plug the ethernet cable and the microSD card. Turn on the board to verify that the system boots successfully.

By default one can login as root without password.

Creating an update bundle for RAUC

After sourcing the oe-init-build-env, append the following line to the build configuration conf/local.conf to add nano to the system:

# Adding nano
IMAGE_INSTALL:append = " nano"

Build the RAUC update bundle:

$ bitbake update-bundle

Start a web server:

$ cd tmp/deploy/images/cubox-i/
$ pip3 install --user rangehttpserver
$ python3 -m RangeHTTPServer

Now you can install the bundle on the board, then reboot:

# rauc install http://192.168.1.2:8000/update-bundle-cubox-i.raucb
# reboot

One of the latest RAUC features is the verity bundle format. This format allows updates to be done without storing the whole bundle on the device in advance, which is useful for devices with limited space. One of the requirements for this feature is hosting the bundle on a server that supports HTTP Range Requests.

As alternative, you can transfer the bundle to the device and install it from local storage.

RAUC code-1

Verify that nano was added to the system:

# which nano

Check RAUC status to confirm the system have booted from the second partition:

# rauc status
RAUCcode

For real-world products, this build procedure with the Yocto Project and OpenEmbedded can be optimized further with just a few commands for easy implementation of continuous integration (CI).
